Frozen meat shredder

Frozen meat shredder

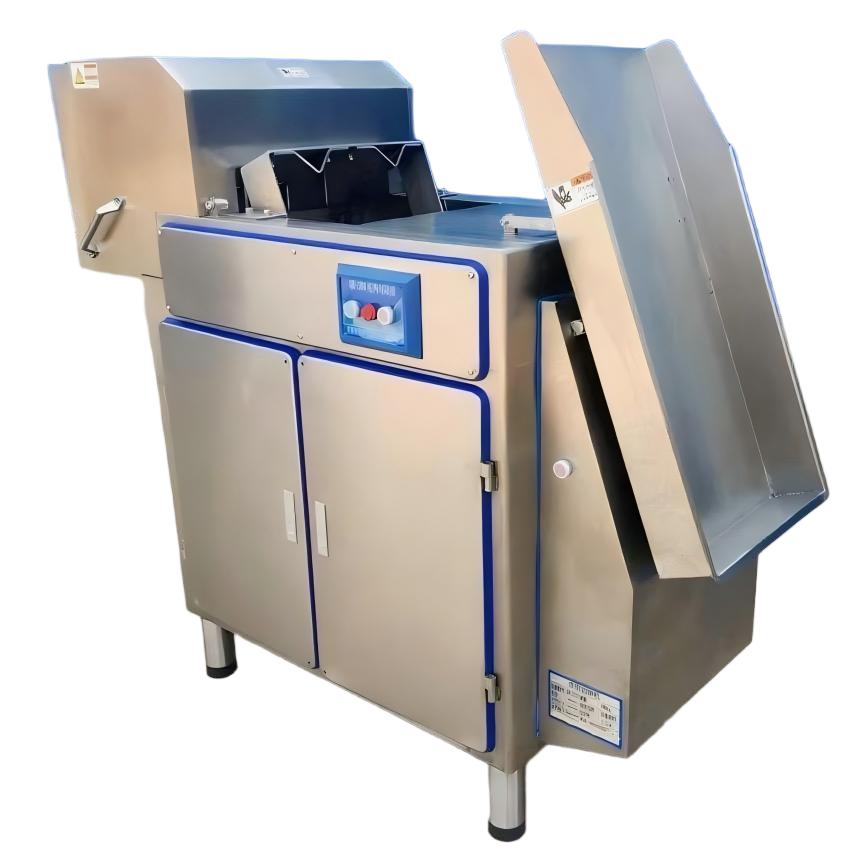

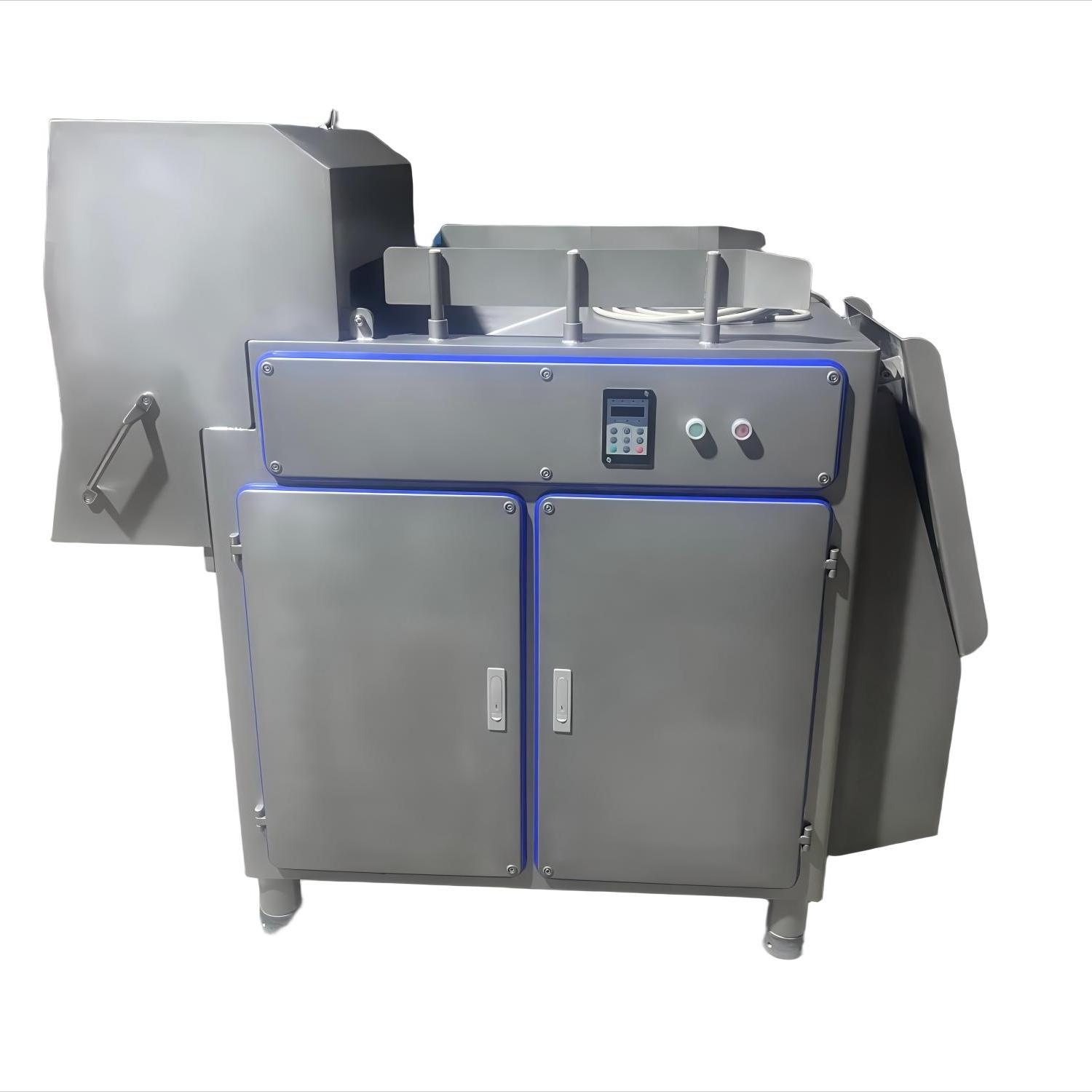

QP Frozen Meat Flaker / Breaker
Power: 5.5 kW
Voltage: 3-phase 380V, 50Hz
Capacity: 3,000 kg/h
Minimum Meat Temp: -8°C
Product Description

■   The whole machine adopted SUS304 Stainless Steel.

■   One piece of 2.5-25kg, frozen meat of -4℃ to -18℃ can be directly cut into slices. It is pre-procedure of cutting and mixing machine

and meat grinder process.

■   Avoid pollution and nurturance lost at slow thaw process. Ensure freshness of meat; No icing and refrigeration process, thus reduce user's cost.

■   Auto-Protection designed.

■   Special designed table to put frozen meat on that can reduce labor intensity of worker. Frozen meat block can easily put in the channel.

■   Wholly welded machine body stable and low noises.

■   Working with standard skip cars, no splash during slicing.


Type(mm)
External Dimension
(V)
Voltage
(kw)
Power
(kg/h)
Capacity
(mm)
Channel Width
(mm)
Cylinder Stroke
(rpm)
Speed
(mm)
Material Size
(mm)
Block specification
(kg)
Weight
QP52302450×1085×13603PH 380V 50HZ113000520700430700×520×2006/20/35760
DQ20001520×970×14503PH 380V 50HZ5.5300052033 time/min
knife frame travel times
200mm
horizontal knife stroke
700×520×150length 20-70
width 30/60/90
670
