Sausage Filler

Sausage Filler
The machine adopts blades stuffing mode, material under vacuum state pushed out the material to the filling tube by the rotating baldes to complete filling. Conrol the quantitification by the intersection angle.
Product Description

■   The filling process performed under vacuum state. Avoid fat oxidation and proteolysis, reduce bacteria survival amount. This guaranteed a longer shelf life, brighter color and the pure taste of the products.

■   Be equipped with automatic casing knot tying device that suitable for animal casing, protein sausage casing, collagen casing, etc. Stuffing speed can reach 500 per minute. Connecting with sausage length controller to realize high-speed knot tying procedure.

■   Each portion: 5g - 99999g.The allowed error of paste product: ±2g(400g), the allowed error of diced products: ±5g(400g).

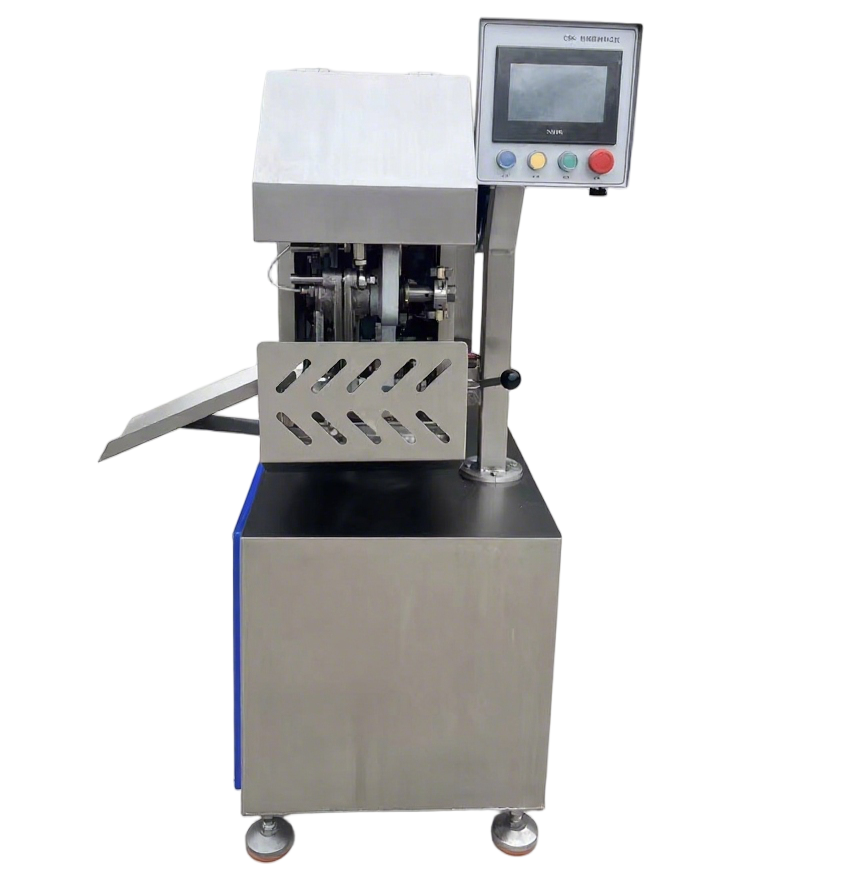

■   Connecting with double clipping machine to realize automatic prpduce.

■   Key parts produced by machine center with high precision. All of pump, impeller and blade have adopted the special heat treatment technique, highly smooth surface, easily to be cleaned up.

■   Man-machine interface, servomotor, decelerator, PLC controller are all imported products.  Vacuum degree can be reached -0.1Mpa.

■   The machine can link with auto sausage hanging machine and high-speed sausage length controller.

■   The whole machine adopts SUS304 plate. Unique exterior design and surface processing technique.


Type(mm)
External Dimension
Voltage(kw)
Power
(L)
Volume
(MPa)
Vacuum
(kg/h)
Filling Capacity
(kg)
Weight
GZY30001000×1100×17003PH 380V 50HZ7220-0.13600750
GZY3000 With Lifter1520×1100×17008900
GZY60001000×1100×17003PH 380V 50HZ9.5220-0.16000750
GZY6000 With Lifter1520×1100×170011.5900
